BESA MRI 3.0

BESA MRI is software to generate individual head models (BEM / FEM) that can be used for EEG and / or MEG source analysis. BESA MRI also allows co-registration of EEG / MEG data with individual MRI data, and visualization of dipole solutions generated in BESA Research in the individual anatomy. BESA MRI is the first software that offers an easy, intuitive interface with an integrated workflow guiding the user step-by-step.

MRI data import is easily performed with DICOM, ANALYZE / NIFTI, VMR readers. The preparation of the MRI data to be automatically processed by BESA MRI requires just a couple of simple worksteps typically demanding only a few minutes of user attention. BESA MRI’s automatic processing can be applied to all subjects prepared by the user in one go, therefore conveniently minimizing the time the user has to work on the computer.

BESA MRI’s automatic segmentation includes an automated inhomogeneity correction to correct for scan artifacts, generates a high quality cortex and scalp reconstruction with optional cortex inflation for enhanced visualization, and, in an optional step, can also generate an individual head model (BEM, FEM) with 3 layers (scalp, skull, brain – BEM) or 4 layers (scalp, skull, CSF and brain – FEM).

BESA MRI 3.0 runs in combination with BESA Research 7.1 and 7.0. Individual head models (BEM, FEM) generated with BESA MRI 3.0 can be imported by BESA Research 7.x for EEG and / or MEG source analysis. EEG / MEG data can be co-registered with individual MRI data using individually digitized electrode positions or head shape points. As a unique feature of BESA MRI 3.0, 10-10 standard electrodes (including inferior electrodes) can also be morphed with individual MRI data. Co-registered electrode coordinates are immediately available in BESA Research. Thus, source images / localizations can be displayed on the individual MRI even if no individual digitization of electrodes has taken place.

The MRI data can be visualized in a user-defined multi-slice view. Discrete solution files generated by BESA Research can be overlayed over the individual anatomy, as well as one of several available brain atlases.

System requirements

  • Windows® 10 (64 bit, Touch not supported)
  • Windows® 7 (64bit, Touch not supported)
  • Processor: minimum: 2 GHz
  • RAM: minimum: 8 GB
  • Display resolution: minimum: 1280×1024 pixels
  • Graphics card supporting OpenGL 2.0 with 16 MB RAM or more

Certification

BESA is CE Certified

BESA has CE certification CE 0197
Here you can download the Conformity declaration for BESA MRI 3.0. PDF (1.8 MB)

BESA – MRI

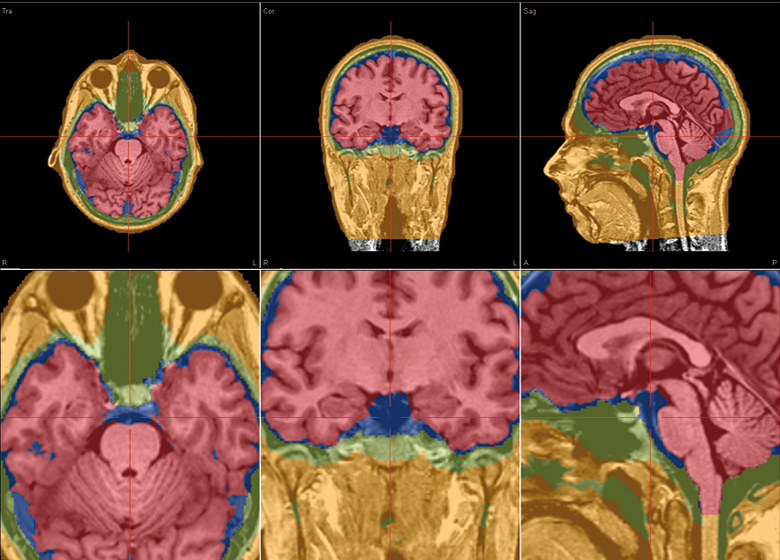

Segmentation and individual head models (FEM)


MRI data is segmented and used to generate individual 4-layered (scalp, skull, CSF and brain) head models (FEM).

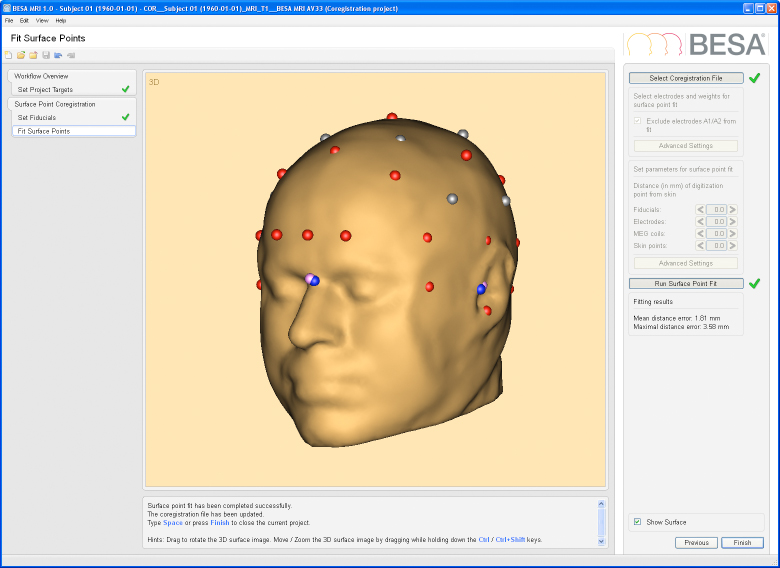

Coregistration


MRI data can easily be co-registered with EEG / MEG data using individually digitized electrode positions or standard electrodes.

Individual realistic head models – BESA MRI 2.0


Individual head models for source analysis.

System requirements

  • Windows® 10 (64 bit, Touch not supported)
  • Windows® 7 (64 bit, Touch not supported)
  • Processor: minimum: 2 GHz
  • RAM: minimum: 8 GB
  • Display resolution: minimum: 1280x1024 pixels
  • Graphics card supporting OpenGL 2.0 with 16 MB RAM or more
